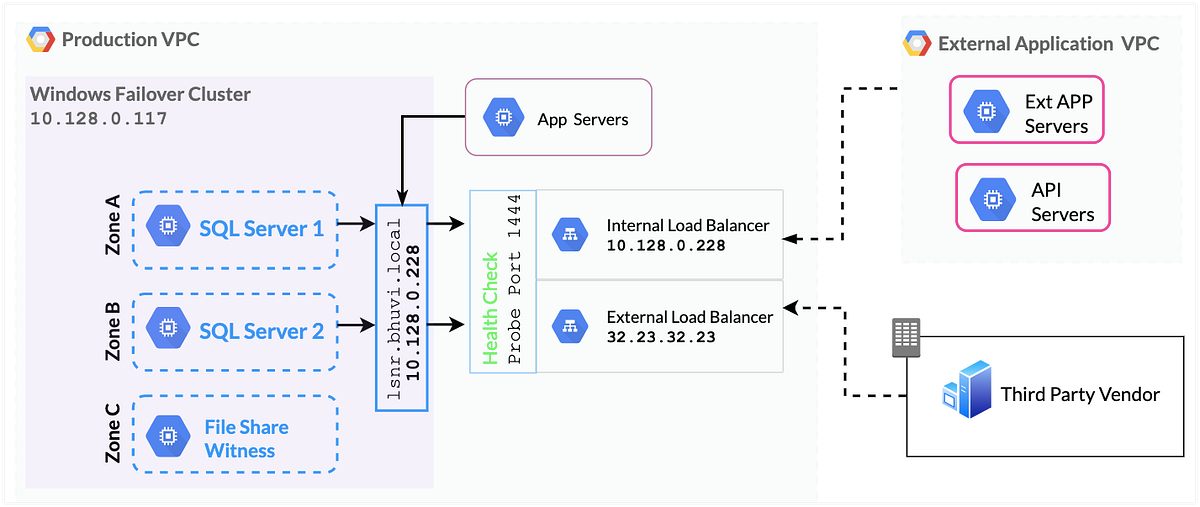

Managing AG Listeners in Multi-Subnet

Certainly! Configuring an AlwaysOn Availability Group (AG) Listener in a multi-subnet environment is a critical aspect of ensuring high availability and disaster recovery for SQL Server deployments. Below is a comprehensive, step-by-step guide detailing each phase of the setup process, including prerequisites, configuration, testing, and best practices.

---

Table of Contents

1. Introduction
   • Overview of AlwaysOn Availability Groups
   • Importance of Multi-Subnet Configuration
2. Prerequisites
   • Hardware and Network Requirements
   • Software and Configuration Dependencies
3. Setting Up the Availability Group
   • Creating the Availability Group
   • Adding Replicas
   • Configuring Endpoints
4. Configuring the Listener
   • Understanding the Listener Role
   • Creating the Listener
   • Assigning IP Addresses
5. Multi-Subnet Configuration
   • Importance of MultiSubnetFailover
   • Configuring DNS Records
   • Setting HostRecordTTL and RegisterAllProvidersIP
6. Client Connectivity
   • Modifying Connection Strings
   • Testing Connectivity
   • Troubleshooting Common Issues
7. Monitoring and Maintenance
   • Monitoring Listener Status
   • Handling Failovers
   • Regular Maintenance Tasks
8. Best Practices
   • Security Considerations
   • Performance Optimization
   • Documentation and Change Management
9. Conclusion
   • Summary of Key Points
   • Final Recommendations

---

1. Introduction

Overview of AlwaysOn Availability Groups

AlwaysOn Availability Groups, introduced in SQL Server 2012, provide high availability and disaster recovery solutions by allowing multiple copies of a database to be hosted across different servers. These replicas can be either synchronous or asynchronous, ensuring data availability even in the event of server failures.

Importance of Multi-Subnet Configuration

In scenarios where SQL Server instances are deployed across multiple subnets, configuring a multi-subnet AlwaysOn Availability Group Listener becomes essential. This setup ensures that client applications can seamlessly connect to the primary replica, regardless of its location, thereby maintaining uninterrupted database access.

---

2. Prerequisites

Hardware and Network Requirements

• Multiple Subnets: Ensure that your network infrastructure supports multiple subnets and that the subnets are properly routed.
• Static IP Addresses: Assign static IP addresses to each SQL Server instance and the Availability Group Listener in each subnet.
• DNS Configuration: Configure DNS to resolve the Availability Group Listener’s name to the appropriate IP address based on the client’s location.

Software and Configuration Dependencies

• SQL Server Version: Ensure that you are using SQL Server 2012 or later, as AlwaysOn Availability Groups are not available in earlier versions.
• Windows Server Failover Clustering (WSFC): Set up WSFC across all nodes participating in the Availability Group.
• Active Directory: All nodes must be part of the same Active Directory domain.

---

3. Setting Up the Availability Group

Creating the Availability Group

1. Prepare the Databases: Ensure that the databases you wish to include in the Availability Group are in full recovery mode and have a recent full backup.
2. Create the Availability Group:
   • In SQL Server Management Studio (SSMS), navigate to the “AlwaysOn High Availability” node.
   • Right-click on “Availability Groups” and select “New Availability Group Wizard.”
   • Follow the wizard to specify the Availability Group name, select the databases, and configure the replicas.

Adding Replicas

1. Configure Primary Replica: Set up the primary replica with the desired synchronization mode (synchronous or asynchronous).
2. Configure Secondary Replicas: Add secondary replicas, specifying their roles (read-write or read-only) and synchronization modes.

Configuring Endpoints

1. Create Database Mirroring Endpoints: On each replica, create a database mirroring endpoint using the following SQL command: CREATE ENDPOINT [EndpointName] STATE = STARTED AS TCP (LISTENER_PORT = 5022) FOR DATA_MIRRORING (ROLE = ALL)
2. Configure Security: Set up appropriate security for the endpoints, ensuring that each replica can authenticate and communicate with others.

---

4. Configuring the Listener

Understanding the Listener Role

The Availability Group Listener is a virtual network name (VNN) that clients use to connect to the Availability Group. It automatically redirects client connections to the current primary replica, even if a failover occurs.

Creating the Listener

1. Open SSMS: Connect to the primary replica.
2. Navigate to the Listener Configuration:
   • Expand the “AlwaysOn High Availability” node.
   • Right-click on “Availability Group Listeners” and select “New Listener.”
3. Configure Listener Properties:
   • Listener DNS Name: Assign a user-friendly name.
   • Port: Use the default SQL Server port (1433) or specify a custom port.
   • Network Mode: Choose “Static IP.”
   • IP Addresses: Assign IP addresses for each subnet.

Assigning IP Addresses

For each subnet, assign a unique IP address to the Listener:

• Subnet 1: 192.168.1.100
• Subnet 2: 192.168.2.100

Ensure that these IP addresses are within the subnet’s IP range and are not in use by other devices.

---

5. Multi-Subnet Configuration

Importance of MultiSubnetFailover

Setting the MultiSubnetFailover parameter to True in the connection string allows clients to attempt connections to all IP addresses associated with the Listener in parallel, reducing connection timeouts during failovers.

Configuring DNS Records

1. Create A Records: For each IP address assigned to the Listener, create an A record in DNS:
   • ListenerName.Subnet1.Domain.com → 192.168.1.100
   • ListenerName.Subnet2.Domain.com → 192.168.2.100
2. Set DNS TTL: Configure the Time-to-Live (TTL) for these records to a low value (e.g., 60 seconds) to ensure that clients quickly recognize changes in the Listener’s IP address during failovers.

Setting HostRecordTTL and RegisterAllProvidersIP

1. Set HostRecordTTL: Get-ClusterResource "AG Listener" | Set-ClusterParameter HostRecordTTL 60 This command sets the TTL for DNS records to 60 seconds.
2. Set RegisterAllProvidersIP: Get-ClusterResource "AG Listener" | Set-ClusterParameter RegisterAllProvidersIP 0 This command ensures that only the active IP address of the Listener is registered in DNS.

---

6. Client Connectivity

Modifying Connection Strings

In your application’s connection string, include the MultiSubnetFailover parameter:

Server=ListenerName;Database=YourDB;Integrated Security=True;MultiSubnetFailover=True;

Certainly! Let’s continue with the comprehensive guide on configuring an AlwaysOn Availability Group Listener in a multi-subnet environment.

---

6. Client Connectivity (Continued)

Testing Connectivity

After configuring the connection string, it’s essential to test the connectivity to ensure that the client applications can connect seamlessly to the Availability Group Listener.

1. Using SQLCMD:
   Open a command prompt and use the following command to test the connection: sqlcmd -S AGListenerName -d YourDatabase -E -M The -M switch enables the MultiSubnetFailover feature.
2. Using PowerShell:
   You can also test the connection using PowerShell: Test-NetConnection -ComputerName AGListenerName -Port 1433 This command checks the connectivity to the listener on the default SQL Server port.
3. Using SSMS:
   Open SQL Server Management Studio and attempt to connect using the Availability Group Listener’s name. Ensure that you can connect without specifying a specific replica.

Troubleshooting Common Issues

• Connection Timeouts: If clients experience timeouts, ensure that the MultiSubnetFailover parameter is set to True in the connection string. Additionally, verify that DNS records are updated promptly during failovers.
• DNS Resolution Issues: If clients cannot resolve the listener’s name to the correct IP address, check the DNS TTL settings and ensure that the records are not cached.
• Firewall Blocking Connections: Ensure that firewalls between clients and SQL Server instances allow traffic on the SQL Server port (default is 1433).

---

7. Monitoring and Maintenance

Monitoring Listener Status

Regular monitoring of the Availability Group Listener is crucial to ensure high availability.

1. Using SSMS:
   In SQL Server Management Studio, navigate to the “AlwaysOn High Availability” node, expand “Availability Group Listeners,” and check the status of the listener.
2. Using T-SQL:
   You can query the following system views to monitor the listener’s status: SELECT * FROM sys.availability_group_listeners; SELECT * FROM sys.dm_tcp_listener_states;
3. Using PowerShell:
   Use the following PowerShell command to get the status of the listener: Get-ClusterResource "AG Listener"

Handling Failovers

In the event of a failover, the Availability Group Listener automatically redirects client connections to the new primary replica. However, it’s essential to monitor the failover process to ensure that it completes successfully.

1. Using SSMS:
   In SQL Server Management Studio, navigate to the “AlwaysOn High Availability” node, expand “Availability Groups,” and check the status of the replicas.
2. Using T-SQL:
   Query the following system views to check the synchronization state: SELECT * FROM sys.dm_hadr_availability_replica_states;
3. Using PowerShell:
   Use the following PowerShell command to get the status of the availability group: Get-ClusterGroup "AG Group"

Regular Maintenance Tasks

• Backup and Restore: Regularly back up the databases and transaction logs to ensure data integrity and recoverability.
• Database Consistency Checks: Perform regular DBCC CHECKDB operations to detect and repair corruption.
• Update Statistics: Regularly update statistics to ensure optimal query performance.
• Index Maintenance: Rebuild or reorganize indexes as needed to maintain performance.

---

8. Best Practices

Security Considerations

• Use Encrypted Connections: Configure SQL Server to use SSL/TLS encryption for client connections to ensure data security.
• Limit Listener Permissions: Grant the minimum necessary permissions to the Availability Group Listener to reduce the attack surface.
• Monitor for Unauthorized Access: Regularly review login activity and audit logs to detect any unauthorized access attempts.

Performance Optimization

• Optimize Network Configuration: Ensure that the network infrastructure supports low-latency communication between replicas to minimize failover times.
• Tune SQL Server Settings: Adjust SQL Server settings, such as max degree of parallelism and cost threshold for parallelism, to optimize performance.
• Monitor Resource Utilization: Regularly monitor CPU, memory, and disk usage to identify and address potential bottlenecks.

Documentation and Change Management

• Maintain Detailed Documentation: Keep comprehensive records of the Availability Group configuration, including replica settings, listener configurations, and DNS settings.
• Implement Change Control Procedures: Follow established change management processes when making modifications to the Availability Group configuration to ensure consistency and minimize risk.

---

Configuring an AlwaysOn Availability Group Listener in a multi-subnet environment is essential for ensuring high availability and disaster recovery in SQL Server deployments. By following the steps outlined in this guide, you can set up a robust and resilient configuration that meets your organization’s needs.

Remember to:

• Test Connectivity: Ensure that client applications can connect seamlessly to the Availability Group Listener.
• Monitor Health: Regularly monitor the status of the listener and replicas to detect and address issues promptly.
• Follow Best Practices: Implement security measures, optimize performance, and maintain thorough documentation to support the Availability Group’s operation.

By adhering to these principles, you can achieve a highly available SQL Server environment that supports your organization’s mission-critical applications.

---

Note: This guide provides a comprehensive overview of configuring an AlwaysOn Availability Group Listener in a multi-subnet environment. For more detailed information and advanced configurations, refer to the official Microsoft documentation and consult with experienced SQL Server professionals.
